Common Rail Injector Testing
Common Rail Injector Testing

Common Rail Injector Testing

Brand: Bitterroot Diesel Performance

Product Code:

Availability:In stock

$75.00 75.00

Available Options

Qty

Ask about this productAsk about this product
Add to Compare

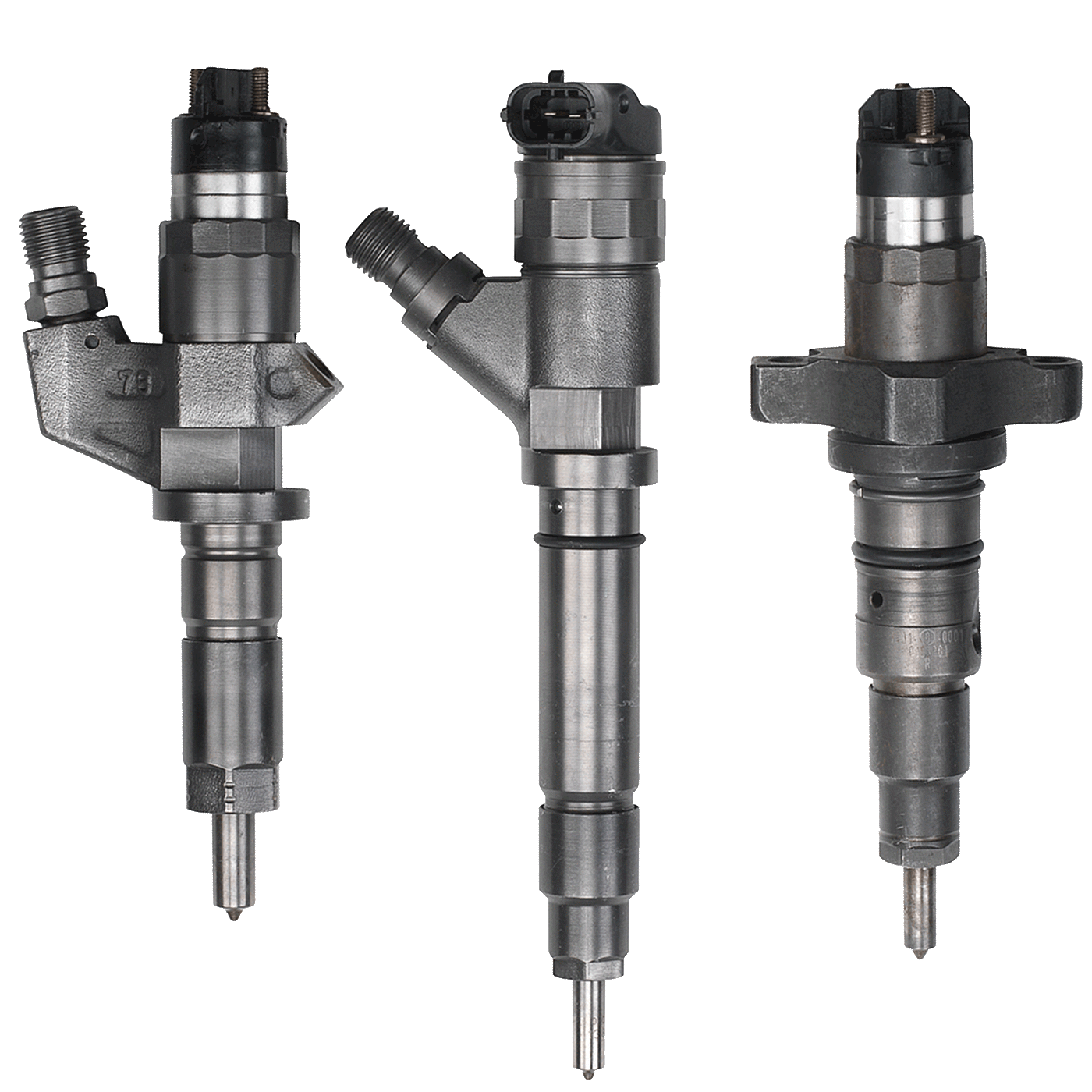

Take the guesswork out of your diesel injector troubleshooting. We have the capability to test BOSCH, DENSO, DELPHI, SIEMENS, CATERPILLAR and PERKINS common rail injectors and pumps up to 180 MPA (26,106.8 PSI). The most popular applications include:

  • 5.9 Cummins
  • 6.7 Cummins
  • 6.6 Duramax
    • LB7
    • LLY
    • LBZ
    • LMM

Injector testing includes:

  • High pressure cleaning to flush out the nozzle.
  • Test injection & return volume under:
    • Idle
    • Pre-injection
    • Mid-range
    • Max fuel
  • Atomization test to check for blocked nozzles.
  • Sealing test to check for leaks.

    After testing, we can give you options on remanufacturing 1 or all of your injectors if needed.

    *Nozzle Calibration

    We can balance your new Bosch stock/honed nozzles to your injectors. The same nozzle will discharge different amounts on each injector it is installed. No two injectors are the same, so it is important to balance your injectors/nozzles for the best engine longevity and performance. Results will be dependent on the injector health.
